EMDEX II - EMF Meter

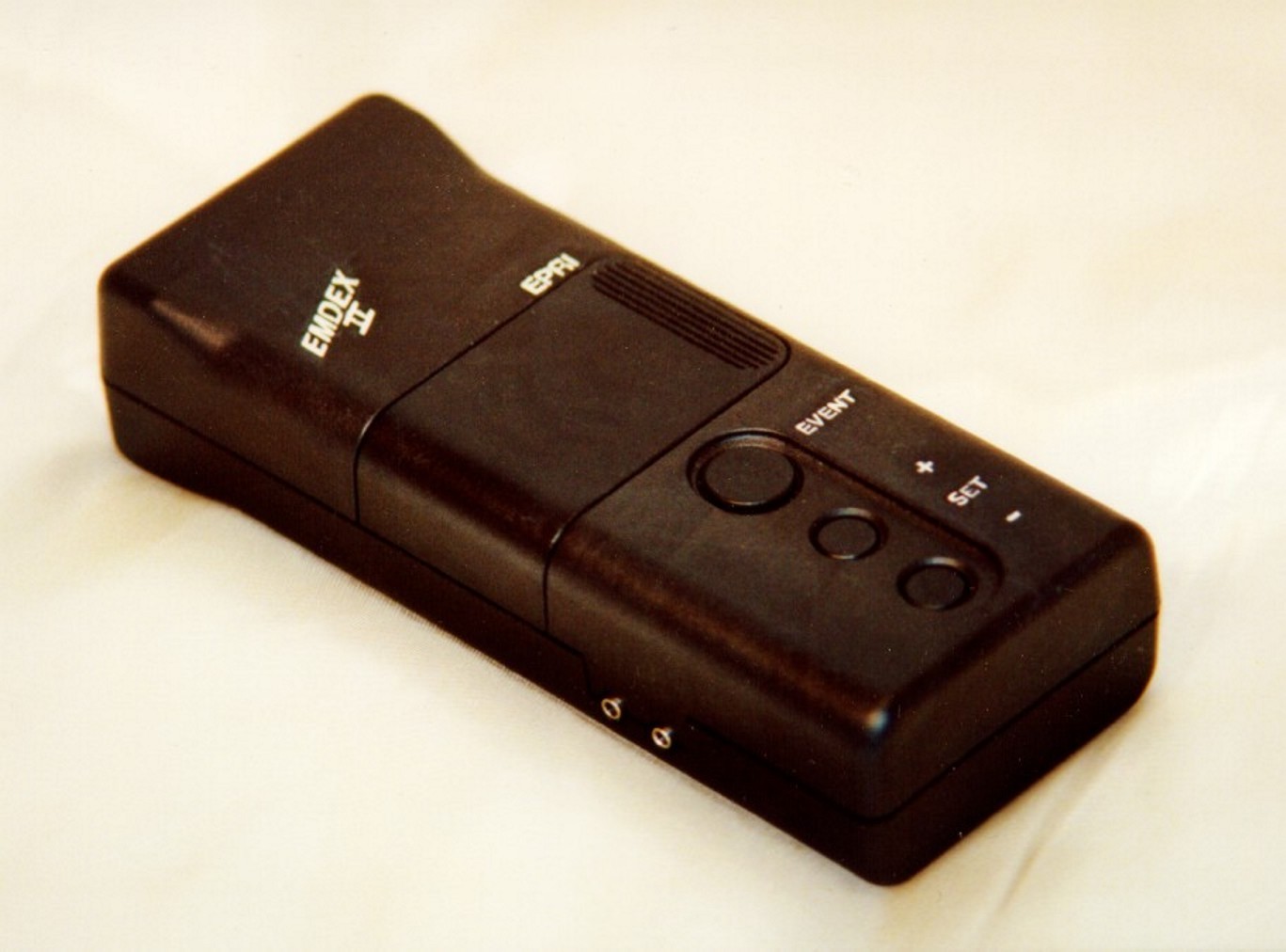

EMDEX II - a versatile magnetic field (EMF) survey and recording meter. With three-axis measurement (rather than single-axis meters), the digital display shows the measured magnetic field while recording the values in computer memory. Up to twenty distinct data sets can be collected prior to downloading the data using the accompanying custom Windows-based software. The meter can be configured by the user to set the sampling interval and measurement parameters. The 9-volt battery operated unit is small (6.6" x 2.6" x 1.5"), light-weight (12 oz), and records power-frequency (60 Hertz) magnetic fields in the range of 0.1 to 3,000 mG, with a minimum resolution of 0.1 mG and typical measurement accuracy of +2%. A high-field version is also available, which extends the measurement range to 4 to 120,000 mG (with a minimum resolution of 4 mG). Accessories are also available for the EMDEX II, including an electric field measurement sensor (parallel-plate system), a clamp-on ammeter to record current on a conductor, and a measurement wheel which allows mapping of an area. For more information, visit www.enertech.net or email etcsales@enertech.net.

Enertech Consultants
494 Salmar Avenue
Suite 200
Campbell, CA 95008
(408) 866-7266
FAX: (408) 866-7279
www.enertech.net
etcsales@enertech.net
