Helicopter Gas Boost Pump - Pop Floats & Struts
Available from American Airworks™

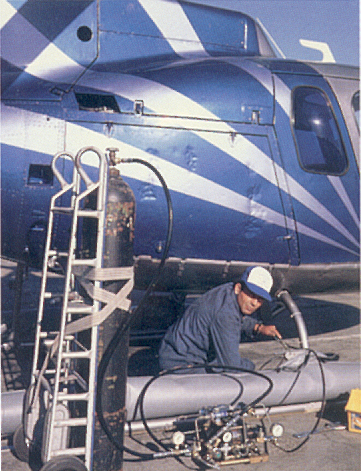

These Haskel nitrogen boosters have been specifically designed for helicopters, and/or small aircraft, where a portable self-powered booster is needed for ground support. The primary application is to service high pressure on-board Nitrogen or Helium bottles on helicopters, which are equipped with emergency inflatable pop floats.
(Required by FAA under FAR regulation 135.183 if flying over water beyond the point where landing would be possible if engine failed.)
Both units are lightweight, 1-man-portable, weather resistant and operate in any position. Each unit comes with connecting hoses, ready for immediate service.
These Haskel boosters can be used to service other components needing high pressure nitrogen such as shock struts and precharging hydraulic accumulators.
Model AC90081 weighs 48 lbs. Charge two 425 cu. in. flight bottles to 3,000 PSI within 20 minutes from less than two standard DOT 2,200 PSI nitrogen cylinders (226 SCF each); or one 7.93 litre bottle to 4,500 PSI nitrogen from approximately 2-1/2 DOT cylinders; or helium to 2,200 PSI, 215 SCF cylinder using less than two nitrogen cylinders to power the pump.
Model AC90082 weighs 43 lbs. Charge two 425 cu. in. flight bottles to 3,000 PSI within 20 minutes from one standard DOT 2,200 PSI Nitrogen cylinder (226 SCF).
Airworks stocks one each of these booster units for fast same day shipping. Standard delivery on these units is about eight (8) weeks if ordered from the factory. Call 800-523-7222.
