ELDR AC, DC or Air Powered Drum Dumpers

Product Details

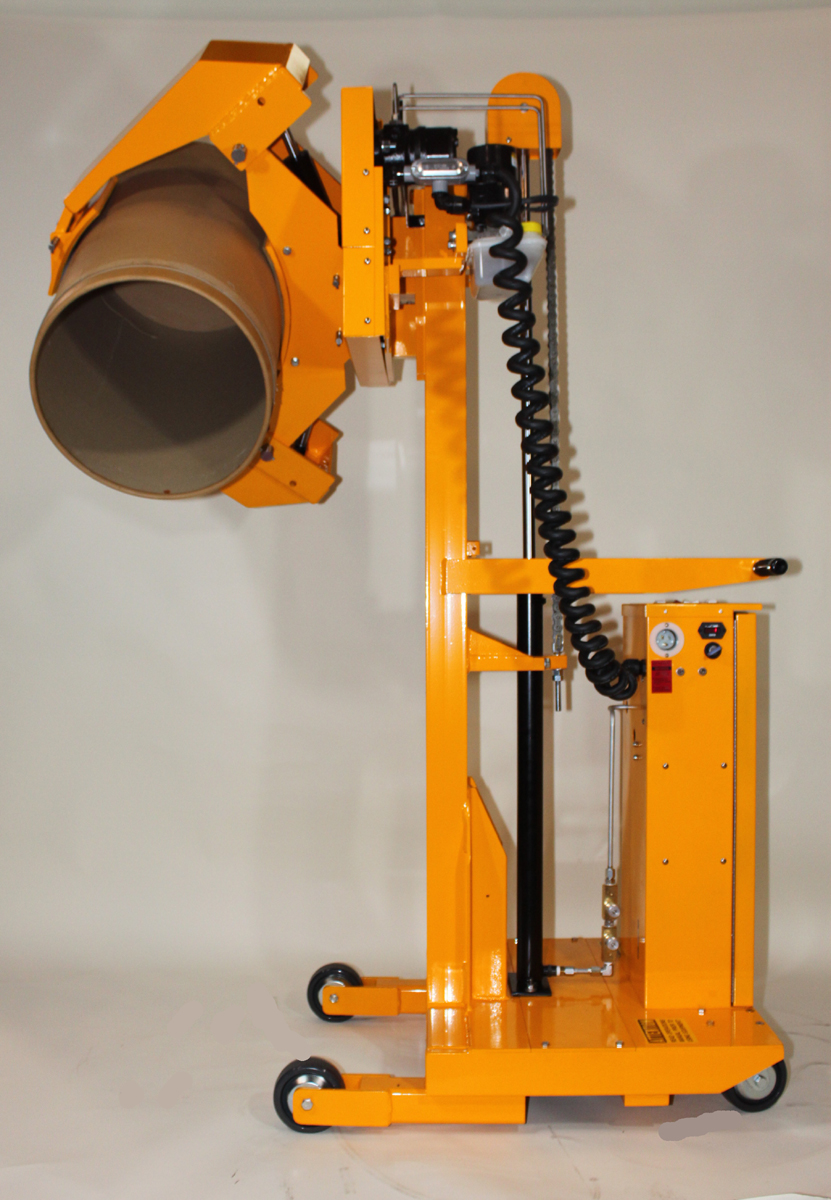

"EasyLift ELDR narrow aisle drum dumpers are 360 degree side rotating models for handling drums up to 500 lb./227 kg. Both the 27"" overall width of the straddle leg model and the 24"" overall width of the counter-balanced drum dumper permit gripping drums of various diameters from the side or corner of a pallet, while maneuvering through tight congested areas. Optional scales provide excellent accuracy in dispensing by weight, eliminating the need to pre-weigh materials on floor scales.

Capacity up to 500 lb./ 227 kg.

All Drum Dumper Models available include: 24-volt DC powered, 110 volt AC powered or air powered. Single stage masts provide 48"" to 60"" of lift. Can be used with either:

Lowered height of all clamps on the straddle leg models is 10.5""/356 mm. The lowered height of all clamps on the counter-balanced models is 14""/356 mm due to the larger 8"" casters. All models are finished with an standard safety yellow powder coating. Optional FDA approved epoxy powder coating with stainless hardware or stainless steel construction is available for pharmaceutical and food grade applications.
