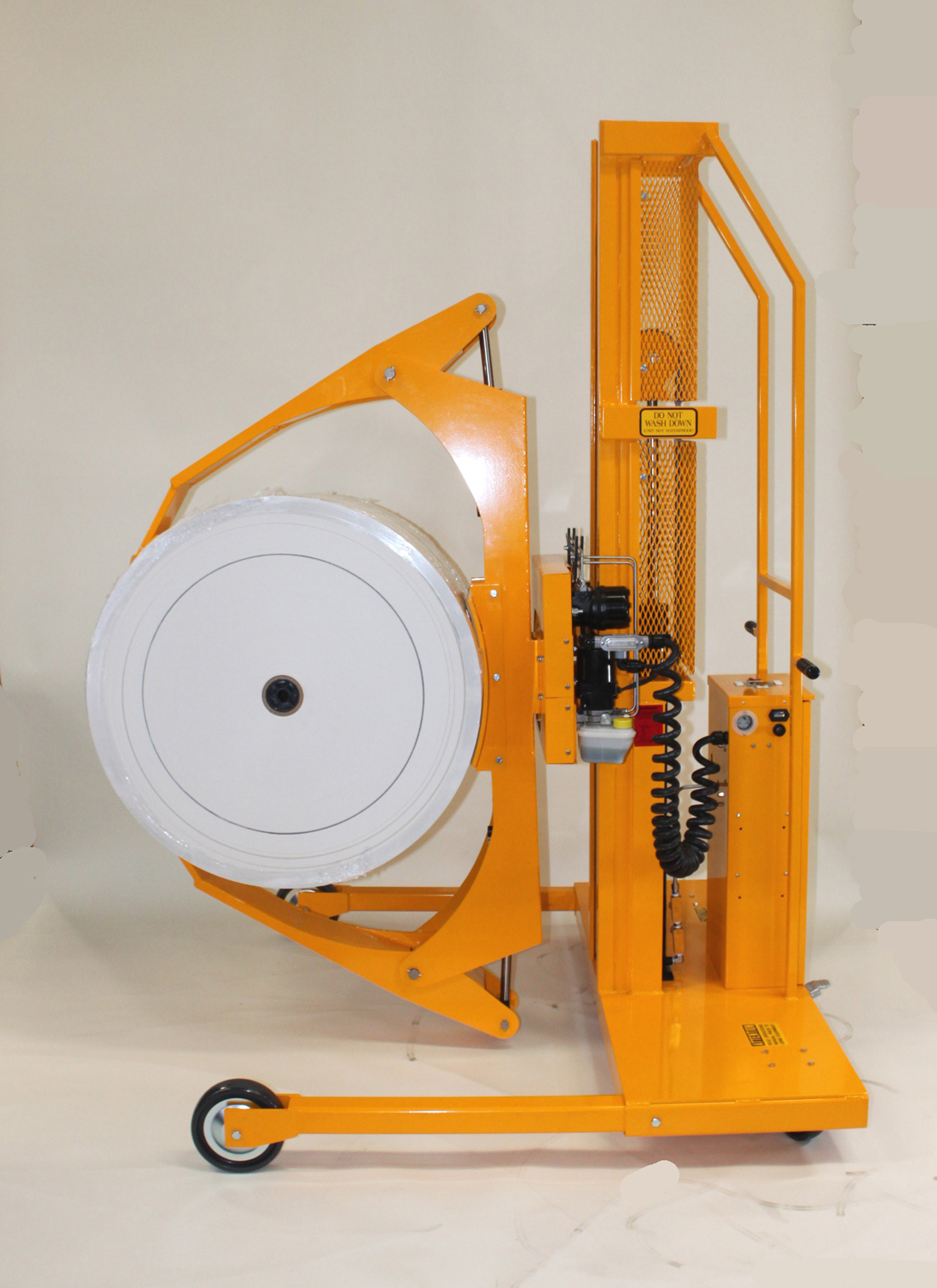

EasyLift Roll Manipulators & Transporters Capacities to 1500 lb/680 kg
Available from Easy Lift Equipment Co Inc
Straddle Leg models are available with several different clamps for specific ranges of roll diameters. The I.D. between the straddle legs is built to the customers’ specification, such as the need to straddle a pallet. Most models can grip rolls from the corner of a pallet. The leg length is adjustable to meet the desired machine capacity up to 1500 lb/680 kg. The RCR clamp is available in three different sizes to meet the needs of the various size roll diameters a customer needs to handle. An optional small roll adapter can be easily pinned in place to permit gripping rolls as small as 9”/228mm. The height of the roll clamping pads can be 8” to 16” in height depending on the length of the roll. This equipment is powder coated for durability and also available with an FDA approved power coatings available as an option. Other popular options are side shifters which travel 4” right or left of the center. Side Shifters can be quite helpful for placing rolls on converting machines.
