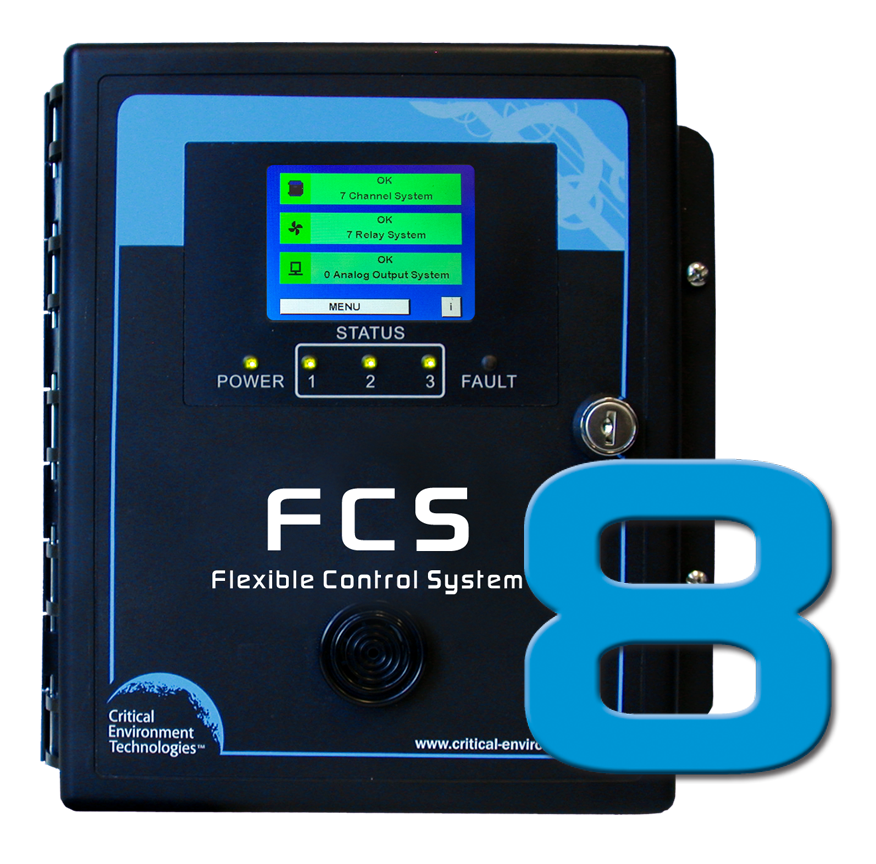

FCS-8 Flexible Control System (up to 8 Channels)
Available from Critical Environment Technologies Canada Inc.
The FCS-8 Flexible Control System offers up to 128 gas channel configurations for monitoring toxic, combustible and refrigerant gases with versatile control functionality for non-hazardous, non-explosion rated, commercial and light industrial applications. It accepts inputs from digital and/or analog transmitters and/or Peripheral Devices (in various combinations), using Modbus® RTU RS-485 or 4-20 mA analog input.
The FCS-8 is available in two models: the FCS-8-M with Modbus® RTU output or the FCS-8-B with BACnet® MS/TP output for communicating with a Building Automation System (BAS). Standard features include, four configurable SPDT dry contact relays with field configurable time delays and trigger levels, a full colour LCD resistive touch screen with LED panel indicating configurable channel alarm status, relay status and fault conditions, extensive menu system with password protection, enhanced logic control, priorities/zoning capabilities, a USB port for firmware upgrades, data logging and a door-mounted, audible alarm. The FCS has flexible configuration settings for analog outputs and supports 4-20 mA and Modbus® driven VFDs.
Optional value added features include, analog inputs and/or analog outputs, a top mounted strobe, a locking door, a manual shut off switch and a water tight, door-mounted audible alarm.
It can also be configured to comply with California Title-24 Building Energy Efficiency Standards.
