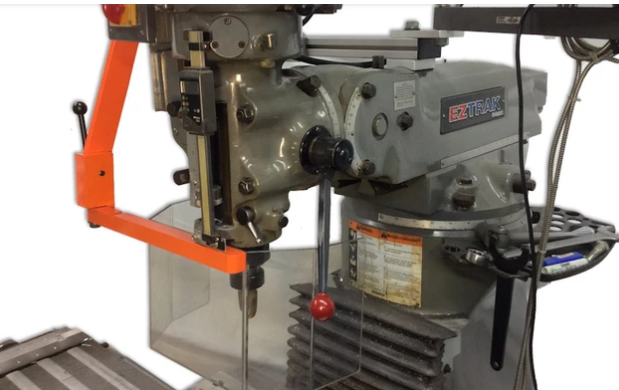

Ram Mount Milling Machine Guard

Available from ATS Machine Safety Solutions

Features:
-Available with or without a safety interlock switch. Select when ordering.Safety switches are rated to only 2 amps and require some form of motor control to adapt to your 3 phase machine.

-Protects operators from flying chips, coolant, and accidental contact with the rotating cutter/spindle. Polycarbonate shield (lexan) 1/4" thick

-Front arm swings open to the left 180 degrees for easy setup and work access

-Installs in minutes on most manual vertical milling machines- Truly bolt-on. No drilling into machine is required!

-Bolts to the threaded hole on the ram originally used as the lifting point. 5/8-11 and 3/4-10 mounting bolts supplied. These fit most brands including Bridgeport. Check your machine before ordering. We can supply threaded reducers or other size bolts if needed.

-D.R.O mount extender included (since this is where most DRO's mount)

-Heavy duty steel adjustable handles-pull out and orient 360 degrees

-Articulating arms allow operator to easily position the shield to fit different work-pieces or fixtures. Guard can also be adjusted left to right on the rail.

-Works with head tilted all the way, as shown with flat shield

-Includes curved lexan shield and flat shield

-Industrial T-slot extrusion provides a way to mount work lamp or other accessories.

-All CNC billet aluminum construction, Powder coated "OSHA Safety Orange"

-Standard arms are 14". Custom lengths available.
